| Manufacturer | ON Semiconductor | |
|---|---|---|
| Series | - | |
Packaging  | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Positive | |
| Output Type | Fixed | |
| Number of Regulators | 1 | |
| Voltage - Input (Max) | 35V | |
| Voltage - Output (Min/Fixed) | 5V | |
| Voltage - Output (Max) | - | |
| Voltage Dropout (Max) | 2V @ 1A (Typ) | |
| Current - Output | 1A | |
| Current - Quiescent (Iq) | 8mA | |
| PSRR | 73dB (120Hz) | |
| Control Features | - | |
| Protection Features | Over Temperature, Short Circuit | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

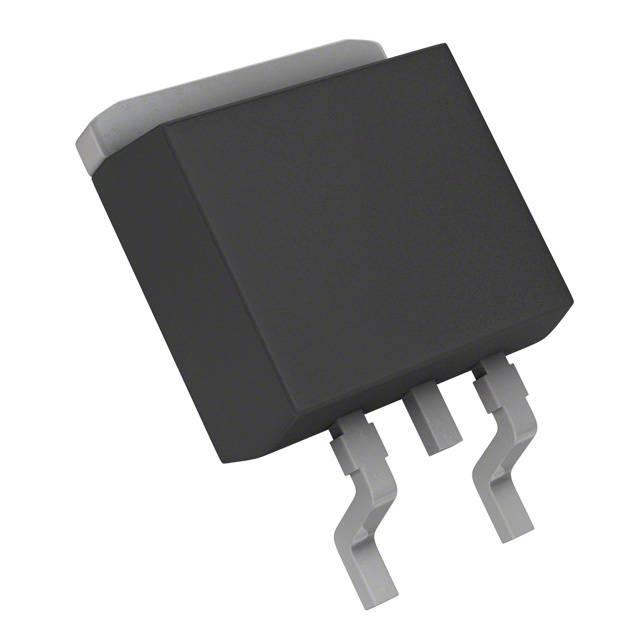

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Supplier Device Package | D-Pak | |
| Base Part Number | KA7805 |
