Manufacturer | Texas Instruments | |
---|---|---|
Series | SIMPLE SWITCHER® | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 40V | |
Voltage - Output (Min/Fixed) | 1.2V | |
Voltage - Output (Max) | 37V | |
Current - Output | 3A | |
Frequency - Switching | 150kHz | |
Synchronous Rectifier | No | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

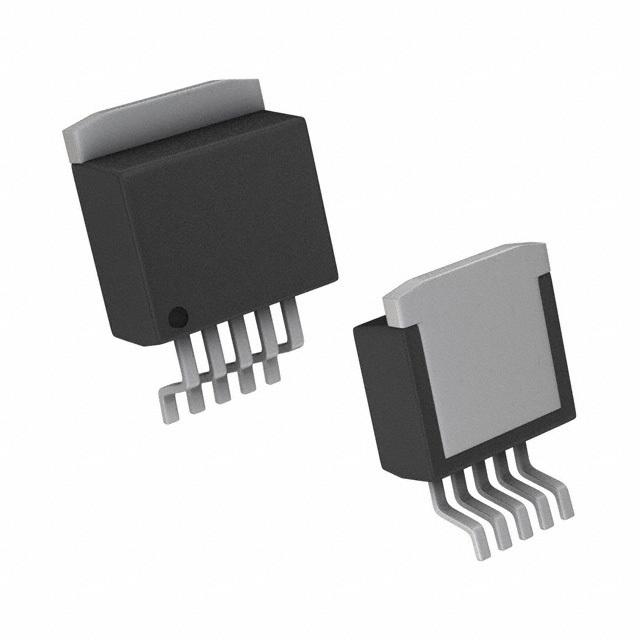

Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | |
Supplier Device Package | DDPAK/TO-263-5 | |
Base Part Number | LM2596 |
