| Manufacturer | Texas Instruments | |
|---|---|---|
| Series | Eco-Mode™ | |
Packaging  | Cut Tape (CT) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck, Split Rail | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 60V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 58.8V | |
| Current - Output | 3.5A | |
| Frequency - Switching | 100kHz ~ 2.5MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

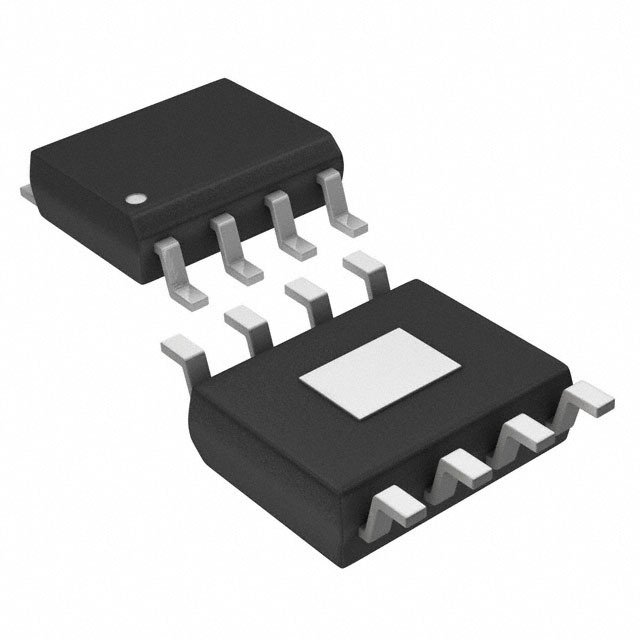

| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-SO PowerPad | |
| Base Part Number | TPS54360 |
