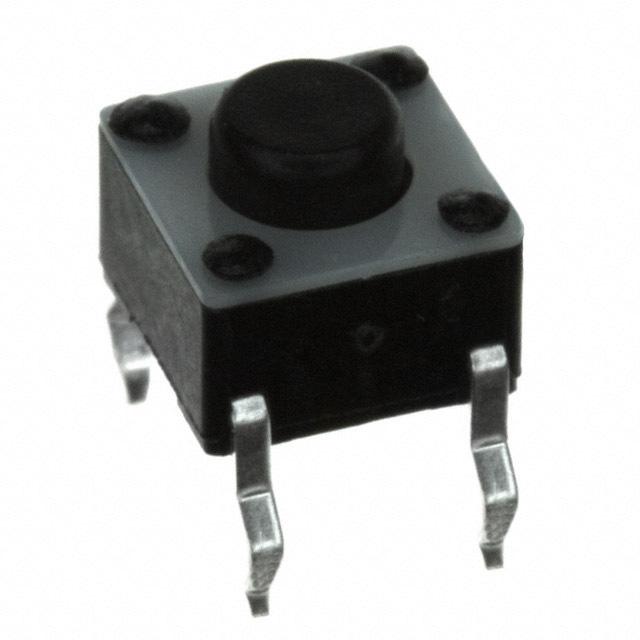

| Manufacturer | TE Connectivity ALCOSWITCH Switches | |
|---|---|---|
| Series | FSMJ | |
Packaging  | Bulk | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Standard | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, Vertical | 5.00mm | |
| Actuator Length, Right Angle | - | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 6.00mm x 6.00mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Operating Force | 160gf | |
| Ingress Protection | - | |
| Features | - | |
| Operating Temperature | -35°C ~ 85°C | |
| Actuator Material | Polybutylene Terephthalate (PBT) | |
| Switch Travel | 0.25mm | |
| Mechanical Life | 100,000 Cycles |
