| Manufacturer | ON Semiconductor | |
|---|---|---|
| Series | - | |
Packaging  | Cut Tape (CT) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 50V | |
| Current - Average Rectified (Io) | 2A | |
| Voltage - Forward (Vf) (Max) @ If | 875mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 30ns | |
| Current - Reverse Leakage @ Vr | 2µA @ 50V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |

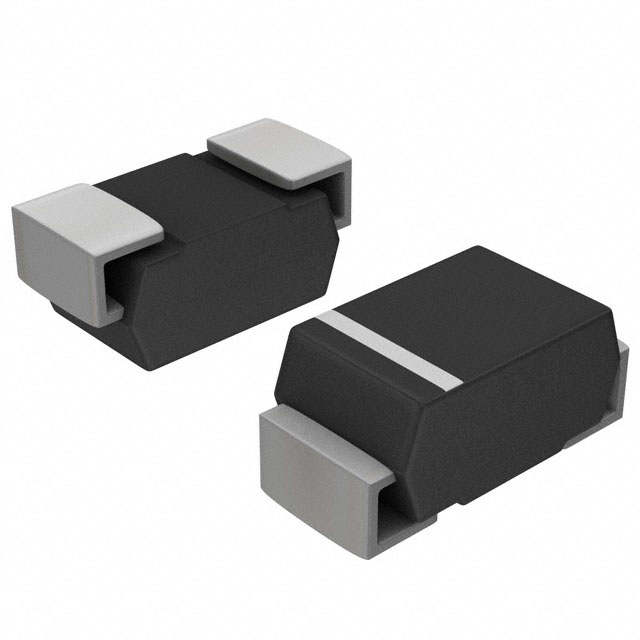

| Package / Case | DO-214AC, SMA | |
| Supplier Device Package | SMA | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| Base Part Number | MURA105 |
